Ballast

PreviousDiff Plate StacksNextChain Guards and Replacement

Last updated 1 year ago

Was this helpful?

Some competition will require that you meet a minimum weight, such as the .

In this case, you may need to add ballast to your car. Ballast plates are widely available, we recommend the stackable "brick" type, pre-drilled so you can bolt it into the car.

The best mounting point is behind the seat, in the seat rails. This avoids upsetting the car's weight distribution and can be solidly bolted to the frame using M10 bolts.

Thanks to owner Andor Tobelem for the below photos and video.

Rush SR Spec Series
Video by Andor Tobelem

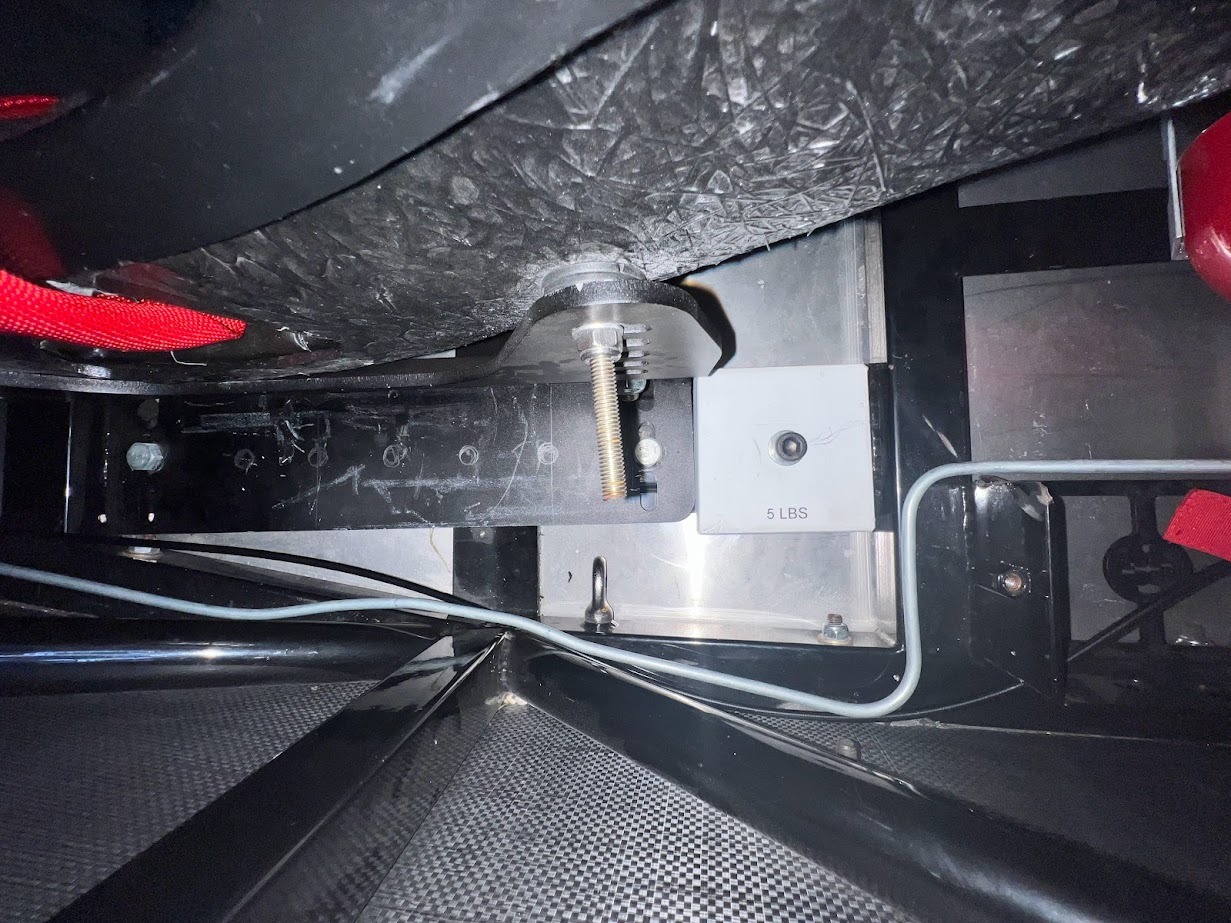

Small blocks from above

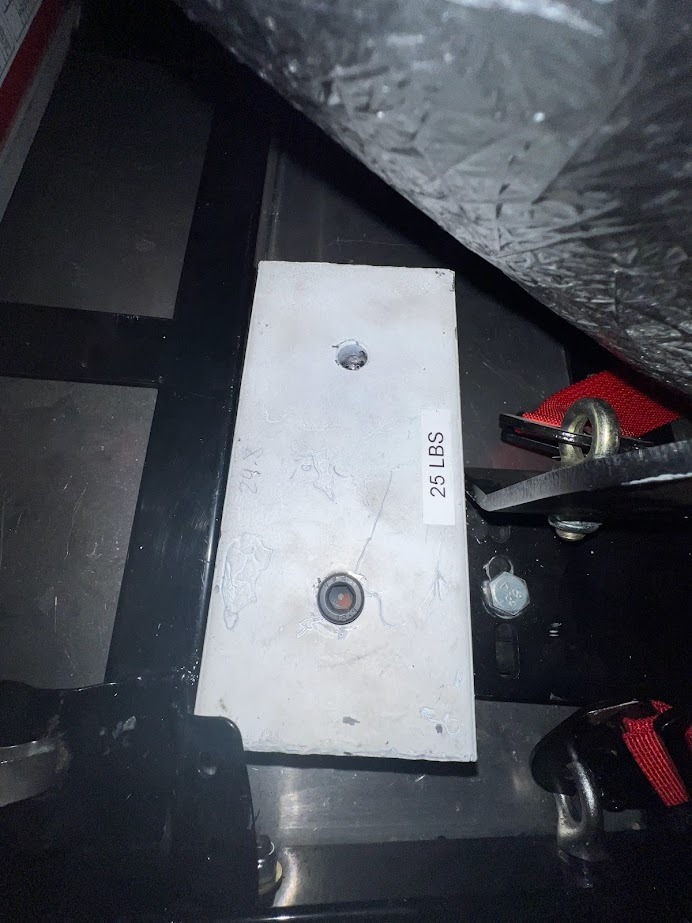

Large block bolted tightly into one rail

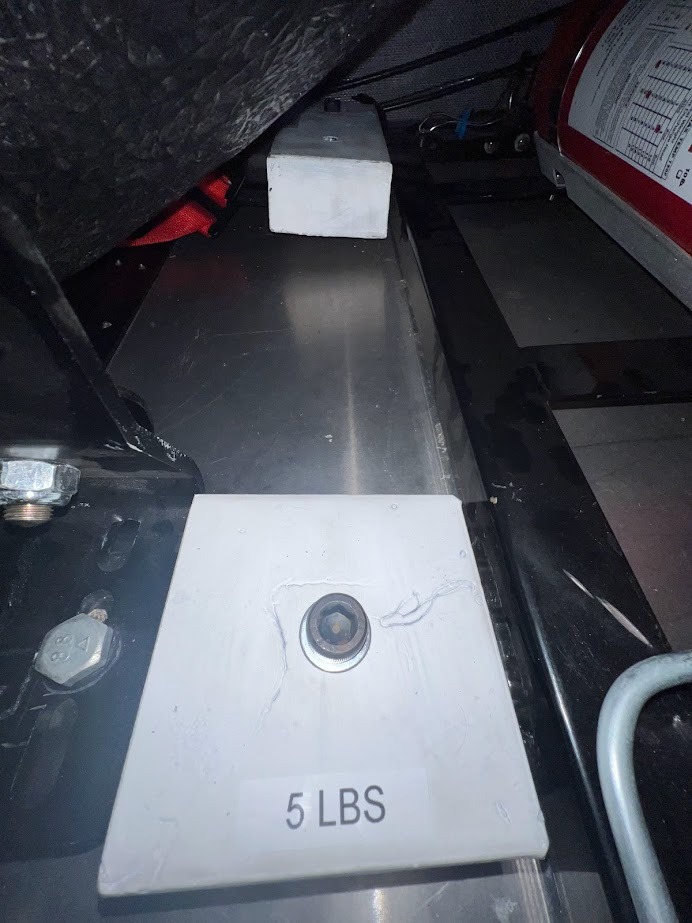

5lb blocks on seat rails

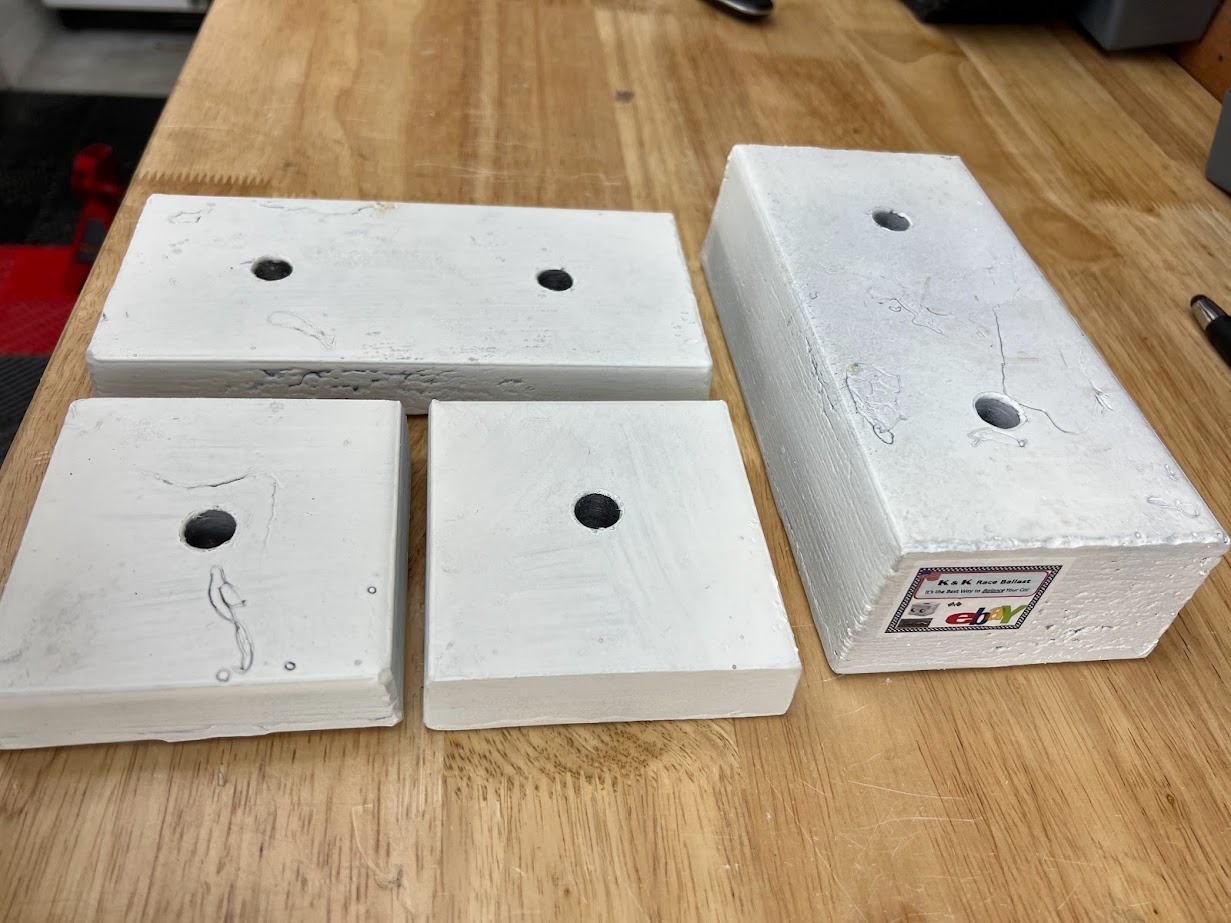

Blocks outside of car
